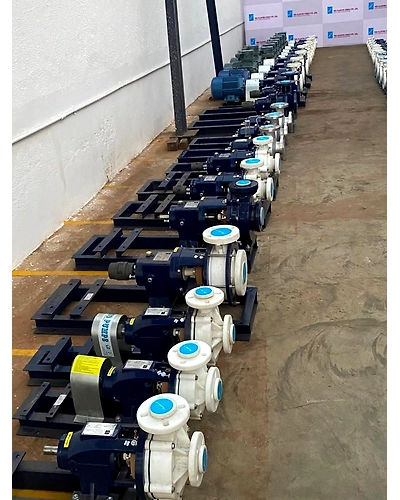

Chemical Transfer Pump
Product is not available
55000.00
/ cmInclusive of all taxes
You Save: 3600. Discount 6.14%
| ITC-HSN: | 841391 |
| Availability | In Stock |
| Minimum Order Quantity: | 1 |
| Accept Small Orders | Yes |
| Fulfilment Capacity (Per Month): | 50 |
| Country Of Origin: | India |
We are instrumental in offering and extensive range of Chemical Dosing Pumps. The offered dosing pumps are appreciated in the market due to its hassle free performance. These dosing pumps are developed by using high-grade material and latest technology with set universal standards. Also, the offered dosing pumps are checked against several parameters of quality so as to assure the flawless deliveries.
MODEL MMDP II
Pump flow rate ( Discharge capacity) 0-662LPH ( liter per hour)
Control Manually
Discharge Pressure 3kg/cm2(Bar)
STROCK LEIGHT 8 MM
SPM /Gear Ratio 185/ 8:1
Coupling Type Flexible spider
Turn Down ration 10:1
Efficiency/Accuracy 98% / +- 1%
End connections 1” BSP FEMALE TREADED
LUBRICATION OIL SPLASH TYPE
MOC ( Material of construction)- contact parts:-
DIAPHRAGH PTFE
LIQUID END P.P
NRV SEAT / CAGE P.P
NRV BALL P.P
Seal NRV PTFE
WORM WHEEL Phosphorous Bronze
Gear Housing IS210 FG 260 C.I
Pump & drive mounting base M.S.
Coupling guard SS304
Driven ( Motor) DATA SHEET
Phase / Voltas/ Hz 3 / 415 /50 AC
Enclosure / Insulation IP-55, / STD TEFC
HP / Kw /RPM 1.0/ 0.75/ 1440
Mounting / make FOOT /CGL/BBL/HINDUSTHAN
-
Additional Information

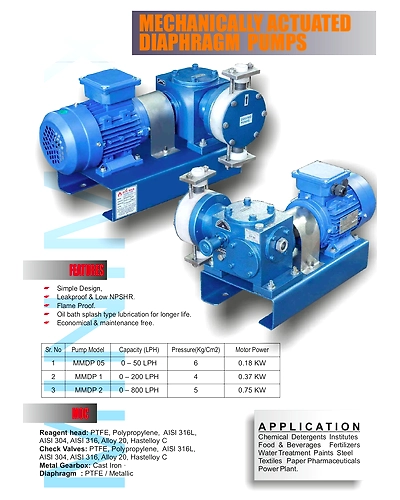

TECHNICAL SPECIFICATION OF MECHANICAL DIAPHRAGM PUMP
MODEL MMDP II
Pump flow rate ( Discharge capacity) 0-662LPH ( liter per hour)
Control Manually
Discharge Pressure 3kg/cm2(Bar)
STROCK LEIGHT 8 MM
SPM /Gear Ratio 185/ 8:1
Coupling Type Flexible spider
Turn Down ration 10:1
Efficiency/Accuracy 98% / +- 1%
End connections 1” BSP FEMALE TREADED
LUBRICATION OIL SPLASH TYPE
MOC ( Material of construction)- contact parts:-
DIAPHRAGH PTFE
LIQUID END P.P
NRV SEAT / CAGE P.P
NRV BALL P.P
Seal NRV PTFE
WORM WHEEL Phosphorous Bronze
Gear Housing IS210 FG 260 C.I
Pump & drive mounting base M.S.
Coupling guard SS304
Driven ( Motor) DATA SHEET
Phase / Voltas/ Hz 3 / 415 /50 AC
Enclosure / Insulation IP-55, / STD TEFC
HP / Kw /RPM 1.0/ 0.75/ 1440
Mounting / make FOOT /CGL/BBL/HINDUSTHAN
-
