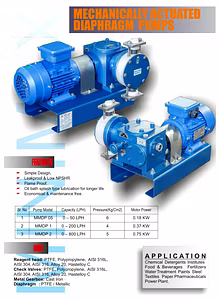

MODEL MMDP II

Pump flow rate ( Discharge capacity) 0-662LPH ( liter per hour)

Control Manually

Discharge Pressure 3kg/cm2(Bar)

STROCK LEIGHT 8 MM

SPM /Gear Ratio 185/ 8:1

Coupling Type Flexible spider

Turn Down ration 10:1

Efficiency/Accuracy 98% / +- 1%

End connections 1” BSP FEMALE TREADED

LUBRICATION OIL SPLASH TYPE

MOC ( Material of construction)- contact parts:-

DIAPHRAGH PTFE

LIQUID END P.P

NRV SEAT / CAGE P.P

NRV BALL P.P

Seal NRV PTFE

WORM WHEEL Phosphorous Bronze

Gear Housing IS210 FG 260 C.I

Pump & drive mounting base M.S.

Coupling guard SS304

Driven ( Motor) DATA SHEET

Phase / Voltas/ Hz 3 / 415 /50 AC

Enclosure / Insulation IP-55, / STD TEFC

HP / Kw /RPM 1.0/ 0.75/ 1440

Mounting / make FOOT /CGL/BBL/HINDUSTHAN

PP Y Type Strainer Flange End

Available M.O.C.:

PP (Polypropylene)

Capacity:4-8 Inch

Size:2 inch

Material:PP

Media:Water

Color:GRAY

Usage/Application:WATERLINE AND INDUSTRIES

End Connection:FLANGE END

Manufacture OF PP / HDPE / ISO / PVDF BALL VALVE ,HDPE PIPE FITTING,PP PIPE FITTING , MDPE PIPE FITTING AND ELECTROFUSION PIPE FITTING,PP PALL RING,Cooling Tower Nozzles, Manufacture From India has been committed to excellence in designing, manufacturing P.P Molded fittings, Cooling Tower Nozzles, in all size required for water Treatment, Chemical and Pharmaceutical Industries.
