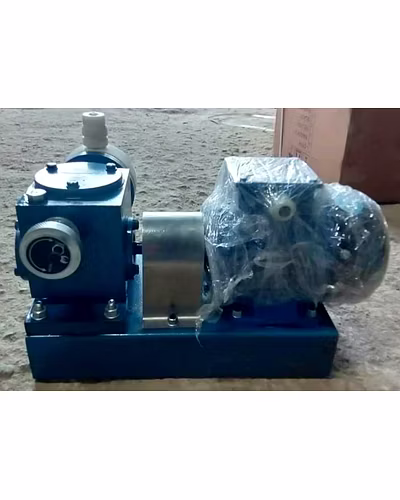

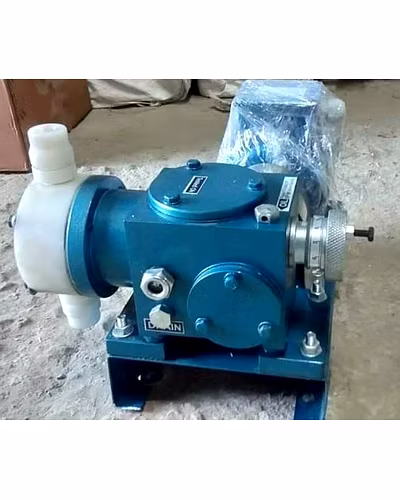

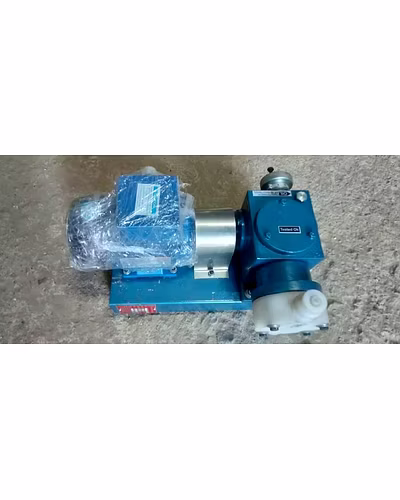

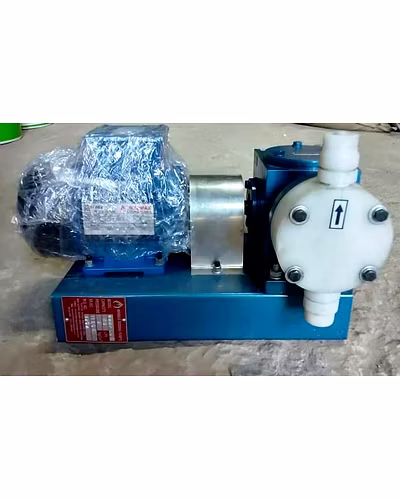

Plunger Type Metering Pump
| Brand | minimax |
| ITC-HSN: | 84135010 |
| Minimum Order Quantity: | 1 |
| Accept Small Orders | Yes |
| Fulfilment Capacity (Per Month): | 1000 |
| Country Of Origin: | India |
TECHNICAL SPECIFICATION OF MECHANICAL DIAPHRAGM PUMP
metering pump
MODEL MMDP .I
Pump flow rate ( Discharge capacity) 0 – 50 LPH
Discharge Pressure 5 kg/cm2
Stroke length 5 mm
SPM /Gear Ratio 100/15 :1
Turn Down Ratio 10 : 1
Efficiency / Accuracy 97% / +_3%
Coupling Type Flexible spider
End connections 1/2” BSP (Female- THREADED)
LUBRICATION OIL SPLASH TYPE
MOC ( Material of construction)- contact parts:- P P
DIAPHRAGM P.T.F.E
LIQUID END P P
NRV SEAT / CAGE P P
NRV BALL P.T.F.E/CERAMIC
Seal NRV PTFE( TEFLON)
NRV SIZE BV-10
WORM WHEEL Phosphorous Bronze
Gear Housing IS210 FG 260 C.I
Pump & drive mounting base M.S.
Coupling guard SS304
Driven ( Motor) DATA SHEET
Phase / Voltas/ Hz 3/ 415 /50 AC
Enclosure / Insulation IP-55, / STD TEFC –IE-2
HP / Kw /RPM 0.5/ 0.37 1440
Mounting / make FOOT/ABB/CGL/BBL/Equivalent
-
Additional Information
MECHANICAL DIAPHRAGM PUMP-METERING PUMP
MODEL MMDP .I
Pump flow rate ( Discharge capacity) 0 – 50 LPH
Discharge Pressure 5 kg/cm2
Stroke length 5 mm
SPM /Gear Ratio 100/15 :1
Turn Down Ratio 10 : 1
Efficiency / Accuracy 97% / +_3%
Coupling Type Flexible spider
End connections 1/2” BSP (Female- THREADED)
LUBRICATION OIL SPLASH TYPE
MOC ( Material of construction)- contact parts:- P PMax Flow Rate: 50 LPH
Country of Origin: Made in India
Capacity:50 LPH
Phase:3 Phase
Suction Tube:10 Mtr
Pressure:5 Kg/cm2
We are the leading supplier of Plunger Type Plunger Type Dosing Pump.
Clients can avail the products at best market prices.
-
