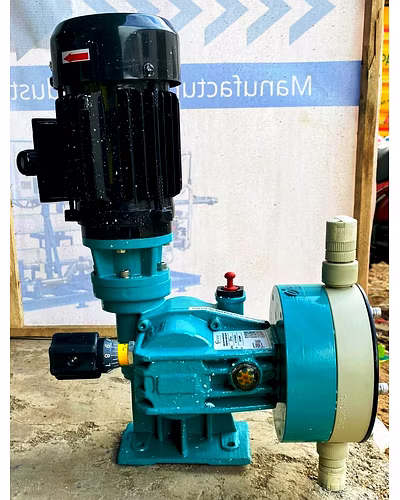

Plunger Type Metering Pump-Vertical
| Brand | e-Dose |
| ITC-HSN: | 84135010 |
| Minimum Order Quantity: | 1 |
| Accept Small Orders | No |
| Country Of Origin: | India |

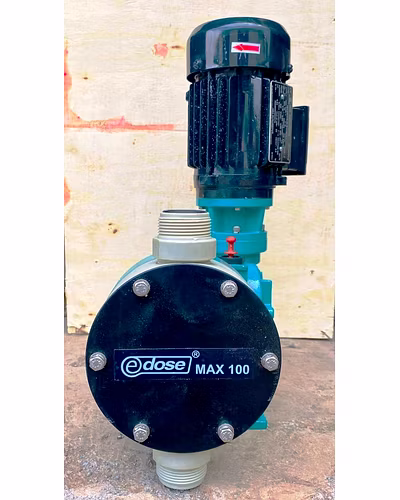

E-Dose Max -100 LPH
Usage/Application:Chemical Dosing
Pump Type:Mechanically Actuated Pump
Suction/Discharge Tubing: Suction Discharge Foot Valve
Power Source:Electric
Material: PP
Voltage:415V
Frequency:50Hz
Discharge Pressure:5kg/cm2
Maximum Discharge Flow:5kg/cm2
Color:Blue
Motor Horsepower:0.25HP
Head:5kg/cm2
Product Weight:15 kgs
Motor Power:0.25HP
Speed:1340 RPM
Power Consumption:415V
Electrical:Three Phase
Dosing Rate:100 LPH
-
Additional Information
We are wholesalers for Dosing Pump In Mumbai Region.
We have entire range of Dosing pumps like Electronic Dosing pump ,
Mechanically actuated Diaphragm Pumps
Flow Rates Ranging from 50 LPH to 400 LPH pumps
Country of Origin: Made in India
Features
High efficiency PTFE Diaphragm
Compact in size
Zero leakage Design
Oil bath lubrication for all drive components
Suction Lift up to 2.5 MWC.
Available in 25, 50, 100, 200, 300, 400 LPH
Available in PTFE for Sulfuric Acid Applications
Scope Of Supply
Metering Pump
Suction and Discharge Connectors
Suction Filter Cum Foot Valve
Injection / Back Pressure Assembly
Material of Construction
Dosing Head : Polypropylene / Teflon
Diaphragm : PTFE faced Hypalon
NRV Ball : PTFE / Borosilicate
Suction/Discharge Ass. : Polypropylene / Teflon
Injection Valve Assembly : Polypropylene / Teflon
Suction Filter Assembly : Polypropylene / Teflon
-
